The Cylindrical HEPA Filter is a type of high-efficiency air filter known for its high filtration efficiency, large air volume, and low noise operation. It is suitable for various air purification applications and serves as a core component for capturing fine airborne particulate matter. This article will provide a detailed analysis of the structure, working principle, performance characteristics, usage precautions, and common issues of the cylindrical HEPA filter.

1. Key Structural Features of the Cylindrical HEPA Filter

The design of the cylindrical HEPA filter is optimized to maximize filtering area and structural integrity. It primarily consists of three essential parts:

Shell: Typically made of high-strength, corrosion-resistant metal materials, providing sturdy protection and support for the internal filter media.

HEPA Filter Element: This is the core of the filter, constructed from special high-density, micro-porous fiber material. The cylindrical shape uses pleating technology to achieve a significantly larger filtration area within a limited space.

Seal: Located at the connection point between the filter and the equipment, it ensures a perfect seal. This prevents air leakage (bypass) around the filter, which would compromise the overall filtration efficiency.

2. High-Efficiency Filtration: The Working Principle

When air enters the cylindrical HEPA filter, it is forced to pass through the dense filter media. The HEPA filter element employs a combination of three mechanical filtration mechanisms to capture airborne particles:

Interception: Particles traveling along an airflow streamline adhere to the fiber when they pass within one particle radius of it.

Impaction: Larger, heavier particles cannot follow the air stream's rapid turns and collide directly with the fibers, where they become trapped.

Diffusion: Extremely small particles (especially those below 0.1 microns) undergo random Brownian motion, increasing their probability of striking and adhering to a fiber.

Due to these combined mechanisms, a true HEPA filter is required to capture at least 99.97% of airborne particles measuring 0.3 microns (the Most Penetrating Particle Size, or MPPS), achieving superior purification.

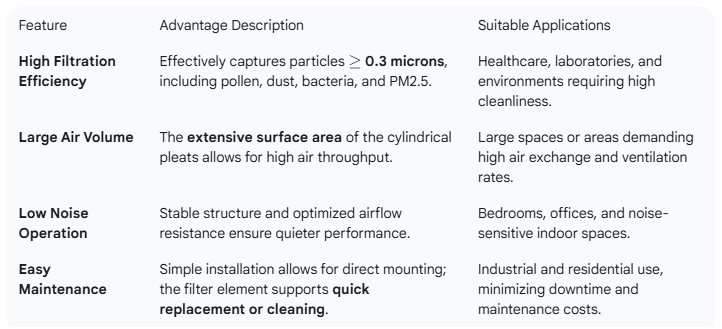

3. Four Major Performance Advantages

The cylindrical design offers distinct performance benefits, making it a preferred choice for various air purification systems:

4. Usage and Maintenance Precautions

To ensure your cylindrical HEPA filter maintains its optimal performance over time, please observe the following guidelines:

Correct Installation: Verify that the filter is installed correctly, ensuring the seals are intact to prevent air leakage that would bypass the filter media.

Regular Inspection and Replacement: Routinely check the filter element for excessive clogging or reduced efficiency. If severely blocked, replace the filter element promptly, using the correct specifications and model.

Moisture Control: When operating in high-humidity environments, pay special attention to waterproofing and moisture resistance to prevent damage to the filter media and maintain effectiveness.

Avoid Overload: Do not use the filter in an environment that exceeds its designed air volume capacity, as this can negatively impact its service life and performance.

5. Frequently Asked Questions (FAQ) and Solutions

Q: What should I do if the filter's airflow volume is insufficient?

A: First, check if the filter element is severely clogged. Accumulation of pollutants increases resistance, which reduces airflow. If a new filter element doesn't resolve the issue, check the device's fan for proper operation or verify that the correct filter model was used.

Q: Why has the noise level of my air purifier suddenly increased?

A: This could be related to the filter. Inspect the housing for looseness or damage. If the filter is not properly secured or the housing is cracked, it can cause extra vibration and air turbulence noise. Tighten or repair as necessary.

Conclusion:

The Cylindrical HEPA Filter is an excellent air filtration solution, combining efficiency, stability, and ease of maintenance. Proper installation, maintenance, and care are essential to guarantee its normal operation, providing you with a cleaner, healthier indoor environment.
