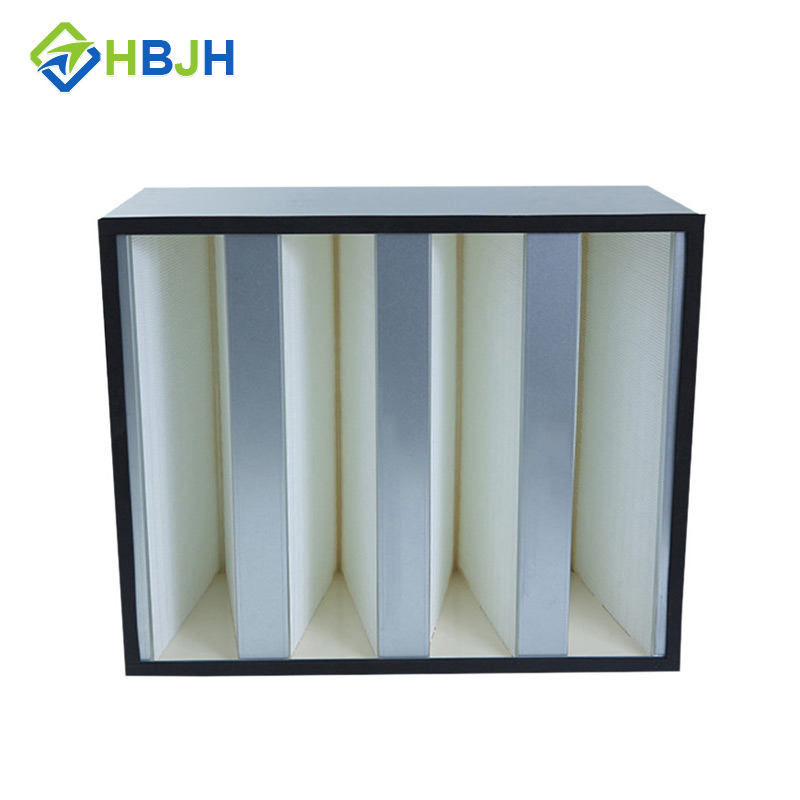

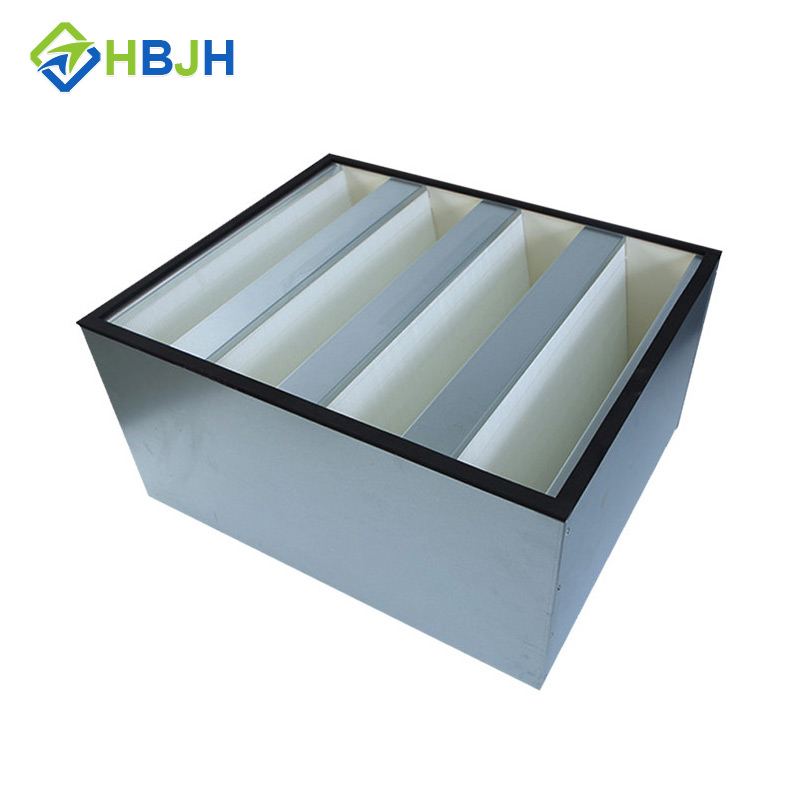

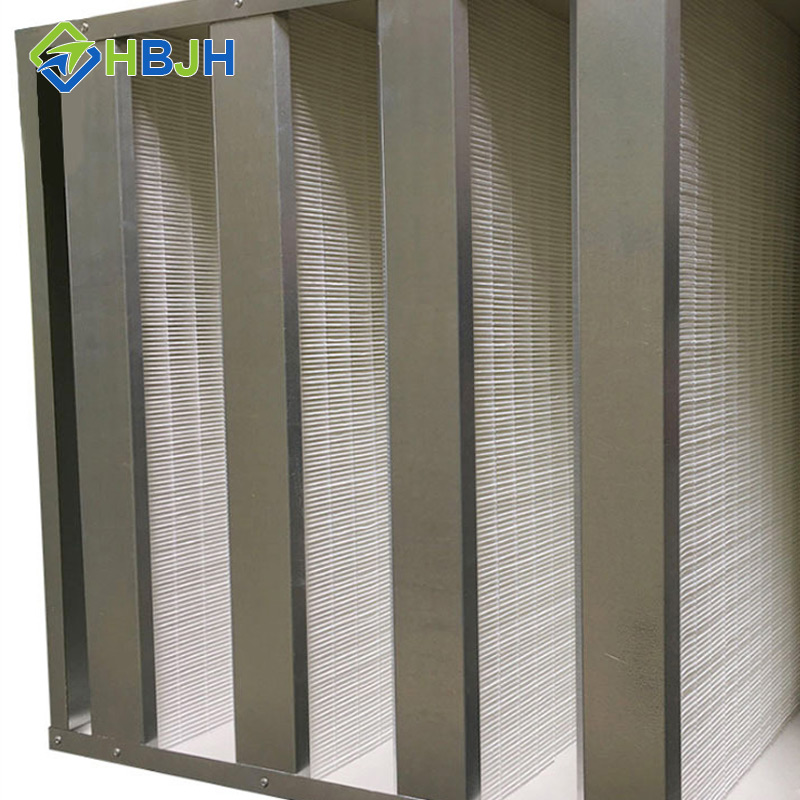

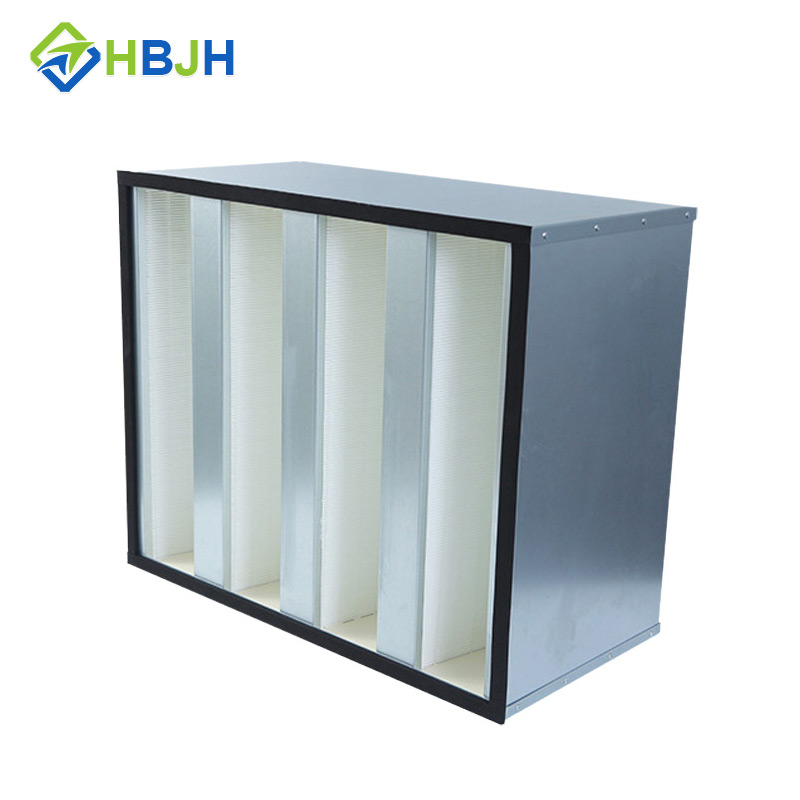

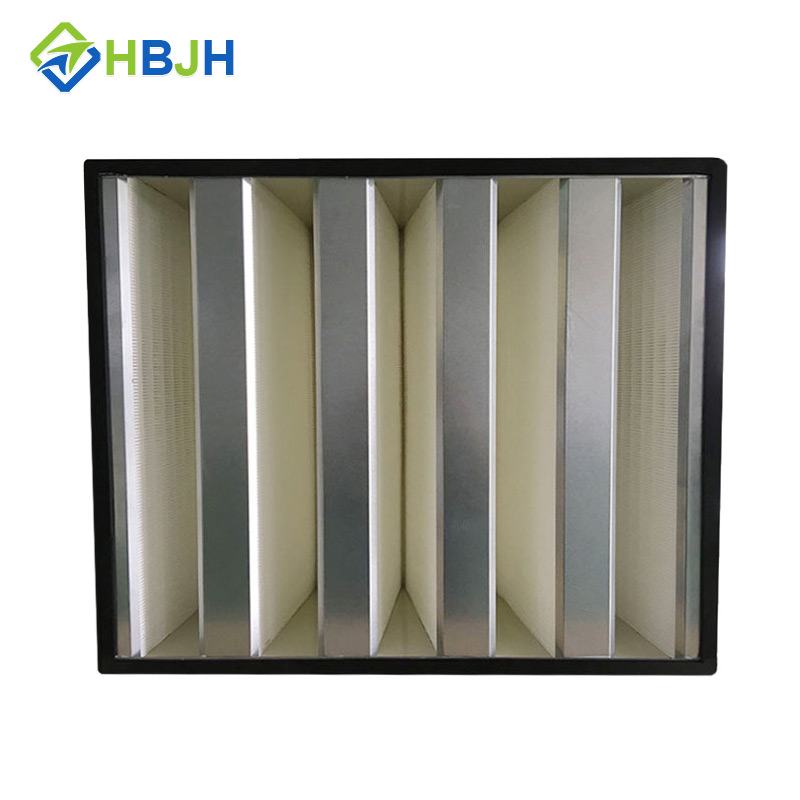

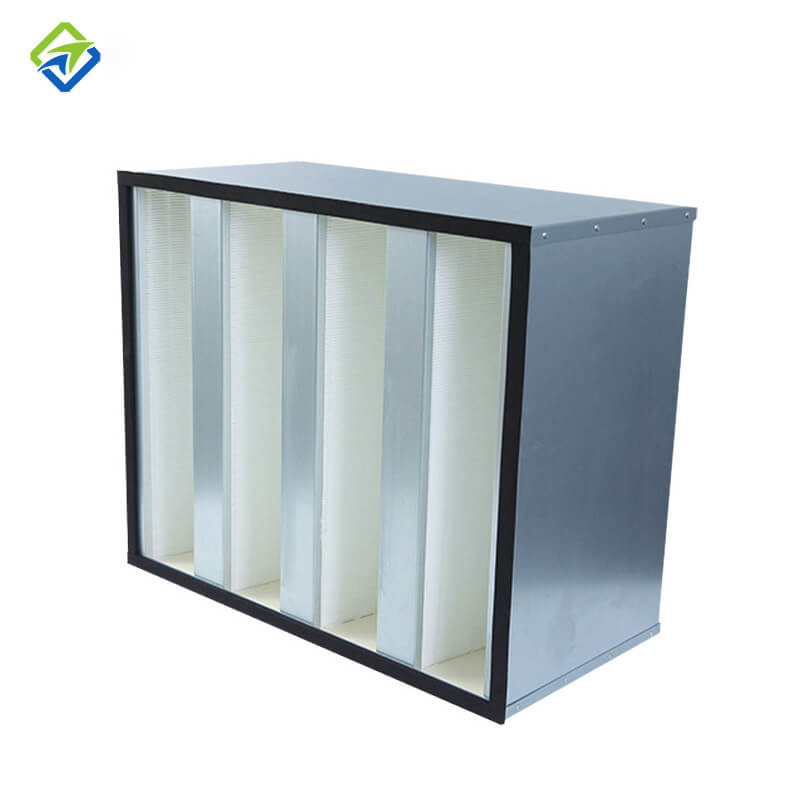

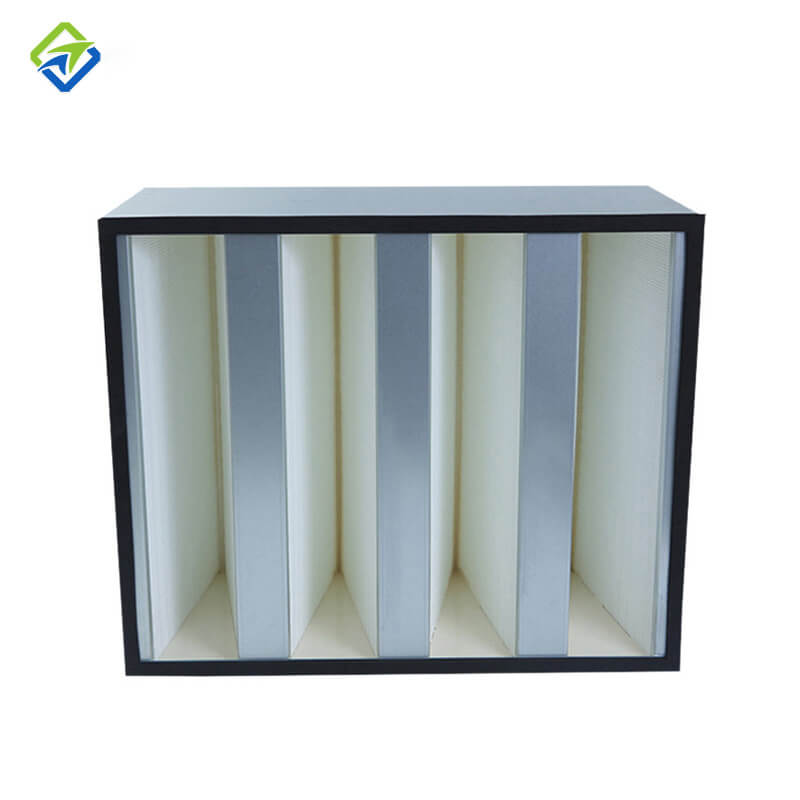

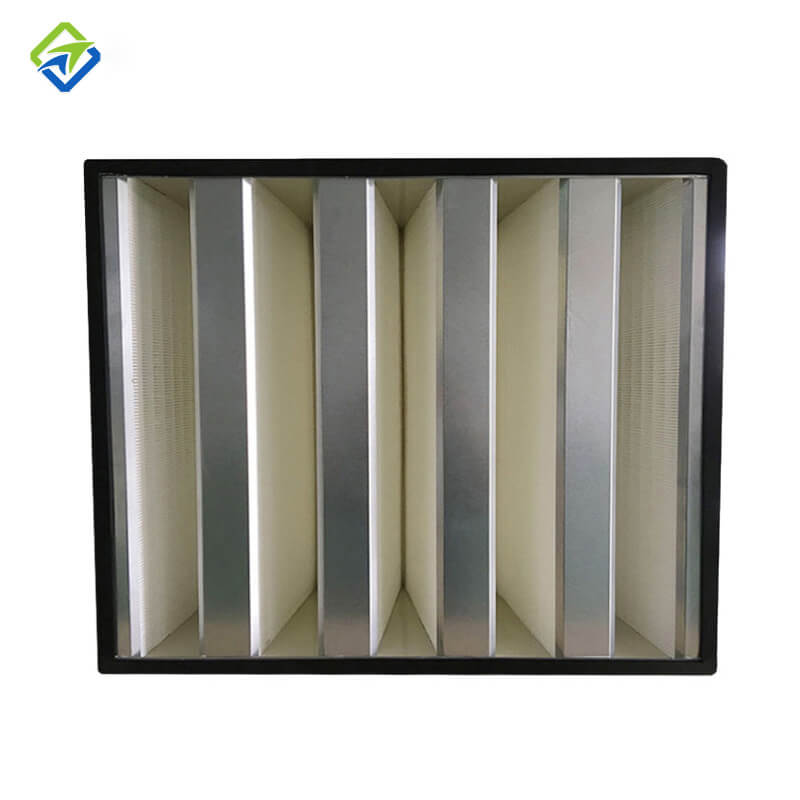

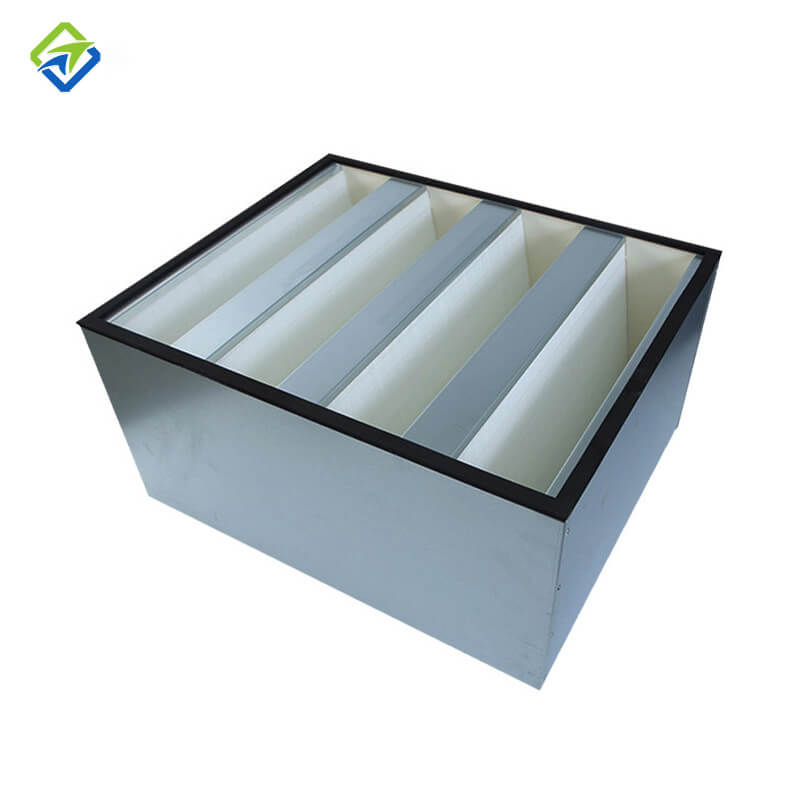

V-Bank High-Efficiency Filter

V-Bank filters are engineered to deliver top-tier air filtration solutions. The unique V-shaped design substantially increases the available filter media surface area, making them exceptionally effective at capturing a wide range of airborne particles. These filters are known for their exceptional filtration efficiency, capable of trapping contaminants such as dust, pollen, mold spores, bacteria, and even fine particulate matter (PM2.5). You can also find V-Bank high-efficiency filters in the exhaust air and recirculation applications to better protect air handling units. With these filters, airflow won't be changed in the HVAC systems, except those designed for turbulent air systems.

Size:

Customized According to Drawing

Samples:

Support Sample Making

Transport Package:

Polybag, Carton, Wooden Case etc

Specification:

Accept Custom Development

Trademark:

HBJH

Origin:

Guangdong Haibei Purification Technology Co., Ltd.

INQUIRE NOW

Product Description


Features:

Grade: M6, F7, F8, F9, H10, H11, H12, H13, H14; H15, H16, UH17, UH18, UH19
MERV11, MERV12, MERV13, MERV14, MERV15, MERV16-19
Frame options: Galvanized steel, aluminum, stainless steel or ABS plastic
Filtration material: fiberglass or polypropylene
The V-shaped design maximizes the available surface area
High efficiency, allowing a high airflow rate
Low operation and maintenance cost, convenient for installation
High dust-holding capacity
Temp. Resistance: Up to 80℃
Humidity Resistance: Up to 80%

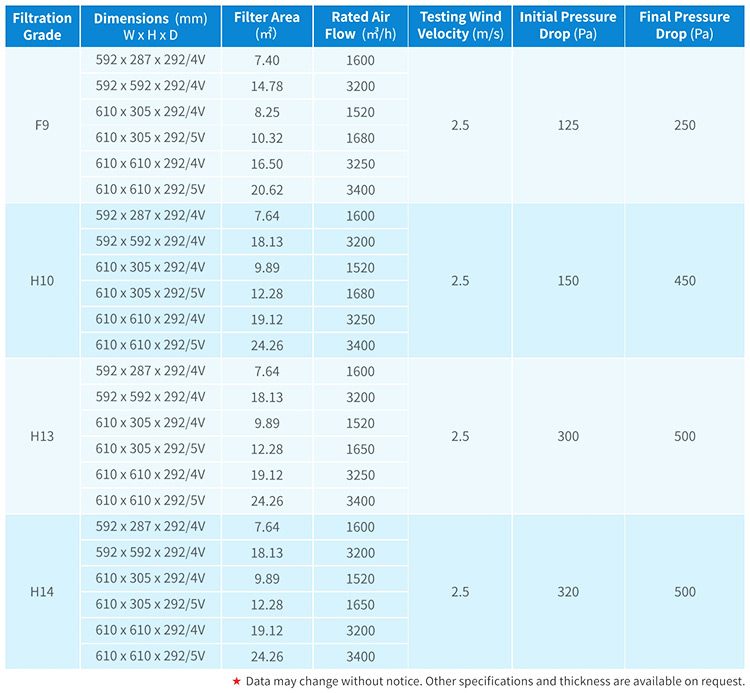

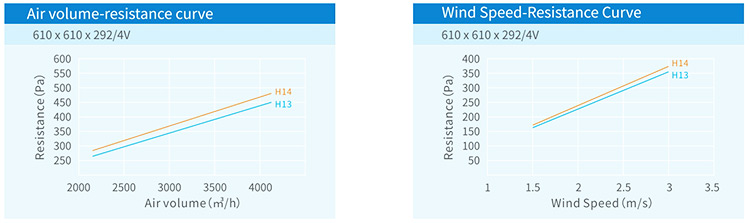

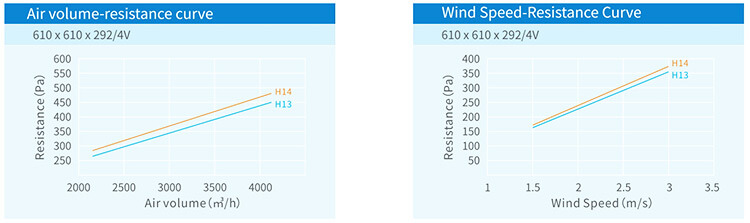

Technical Data:

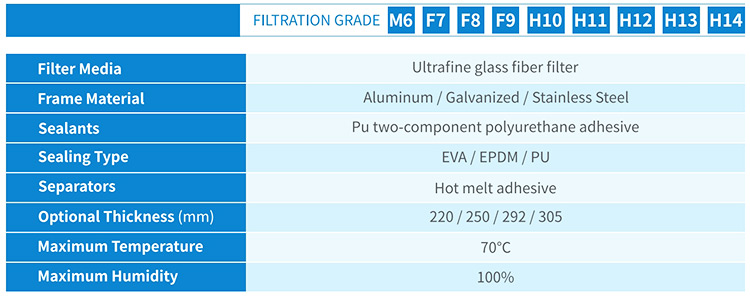

Specifications:

V-Bank High-Efficiency Filter Applications:

V-Bank style high-efficiency filters are great serving as the second filter stage or can be the prefilters for cleanroom applications where a high level of cleanliness is required in the air conditioning system. V-bank filters can help improve the air quality further protecting the main or final filters in HVAC.
V-Bank style high-efficiency filters are also used in industrial, commercial, animal husbandry, pharmaceutical, semi-conductor, electronics, healthcare facilities, and food process applications.

Filter Customization：

Please send us your requirements to get custom sizes and thicknesses.
