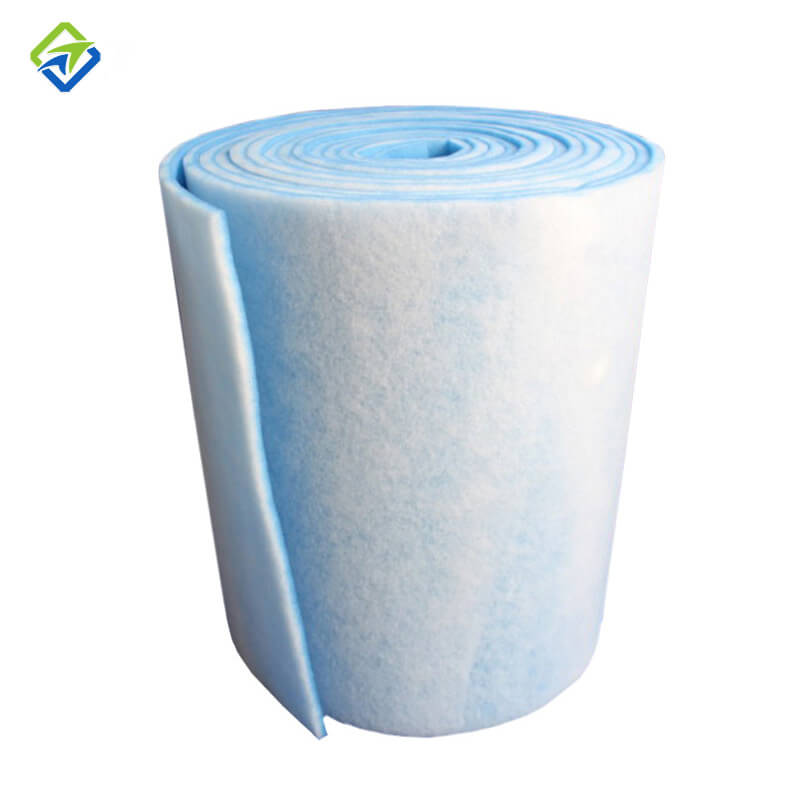

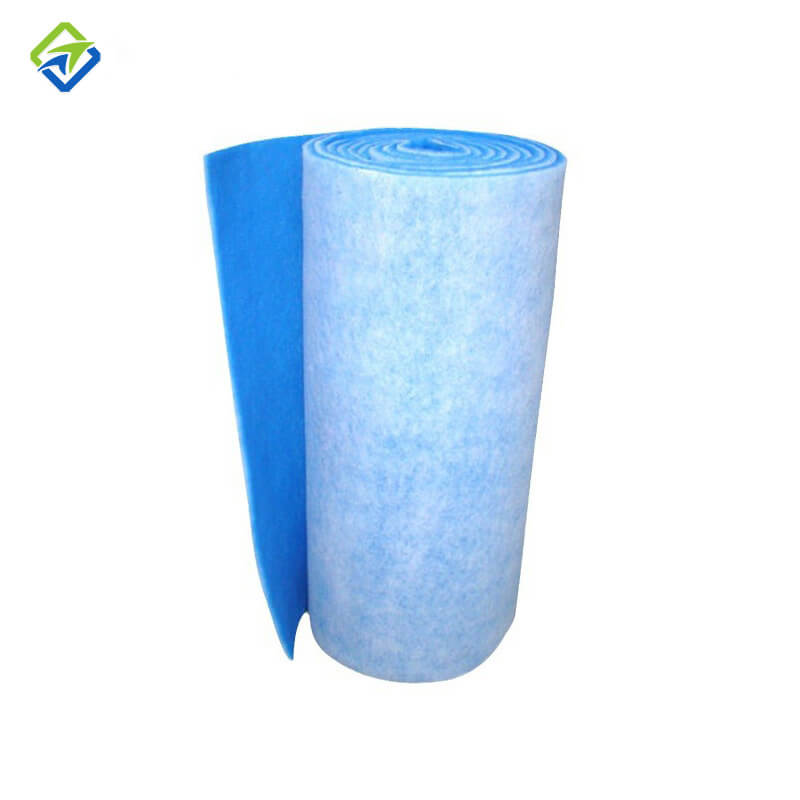

G4 Progressive Density Blue/White HVAC Pre-Filter Media Rolls
Dual-layer, progressively structured filter media (white/blue) for optimal air filtration in industrial and commercial HVAC systems. The graduated density design maximizes dust holding capacity and filter life. Compliant with EN779 G4 standards. Ideal for use in rigid box filters and customized pads.
Size:
Customized According to Drawing
Samples:
Support Sample Making
Transport Package:
Polybag, Carton, Wooden Case etc.
Specification:
Accept Custom Development
Trademark:
HAIBEIJING
Origin:
Guangdong Haibei Purification Technology Co., Ltd.
Product Description

haibeijing filter.png

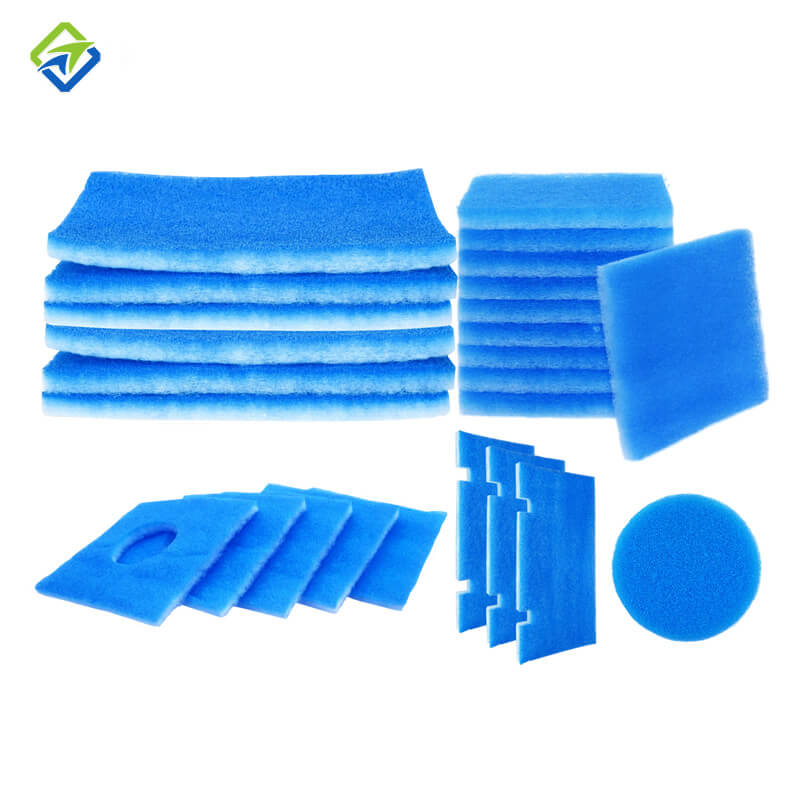

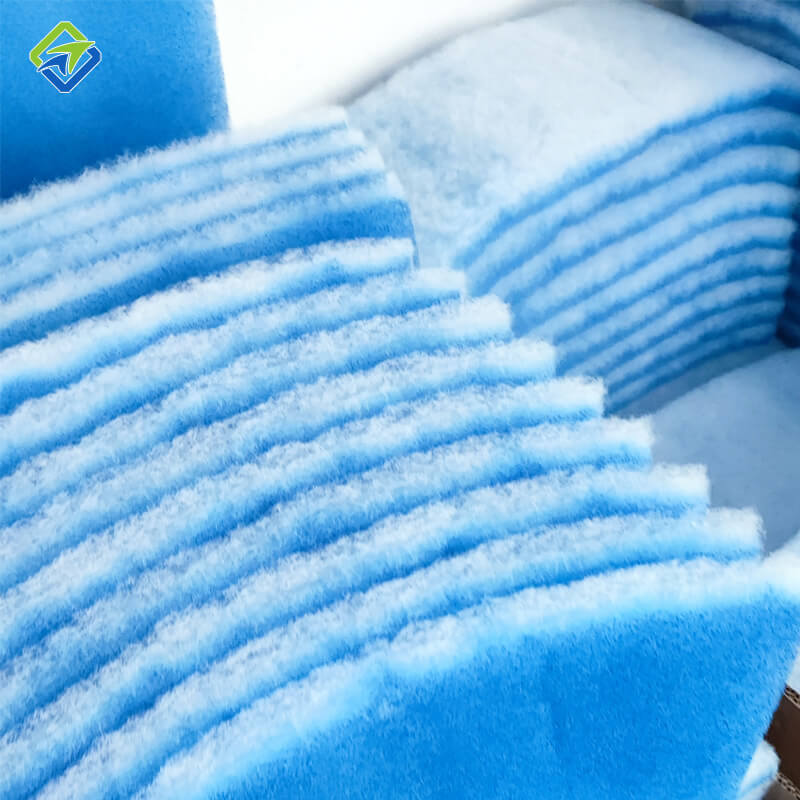

The blue and white filter cotton is mainly made of anti-break PET (polyester) organic synthetic fiber. This material has the characteristics of high dust holding capacity and low resistance, and is suitable for pre-filtration or primary filtration of general ventilation equipment and air control systems.

This material does not contain silicon, can resist the influence of chemical solvents, acidic smoke and other chemicals, and meets the European DIN53438-F1 and American UL900-class2 fire classification standards.

Made by multi-layer step-by-step encryption hot air molding technology, blue and white cotton also has the characteristics of corrosion resistance, 100% humidity resistance and continuous temperature resistance of 100°C.

It can be sprayed with glue to enhance its hardness and structural stability, so as to allow it to be reused after cleaning.


Blue-white filter Cotton.jpg

Blue and white filter cotton.jpg

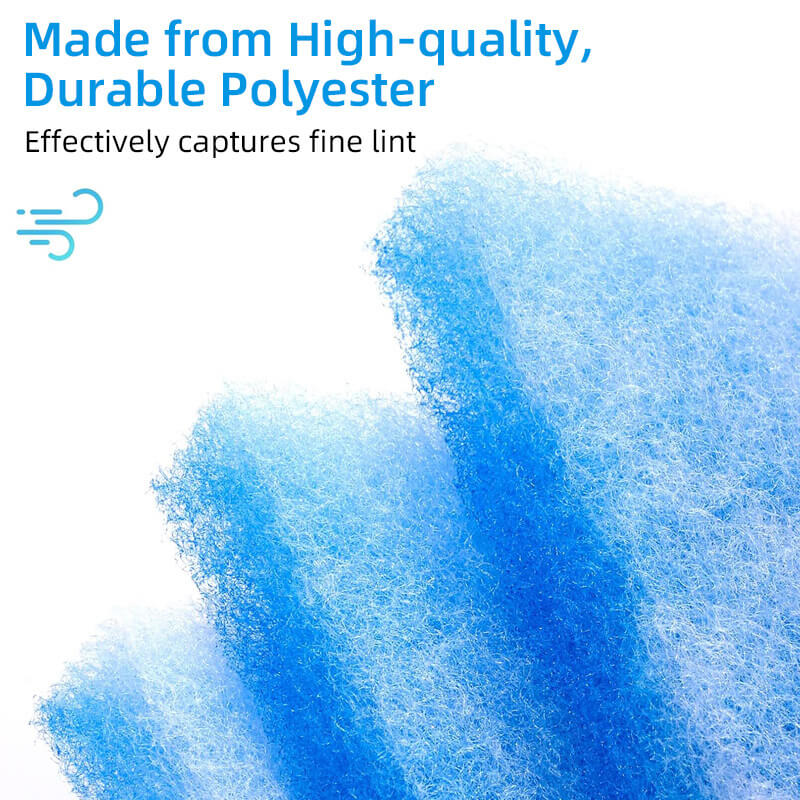

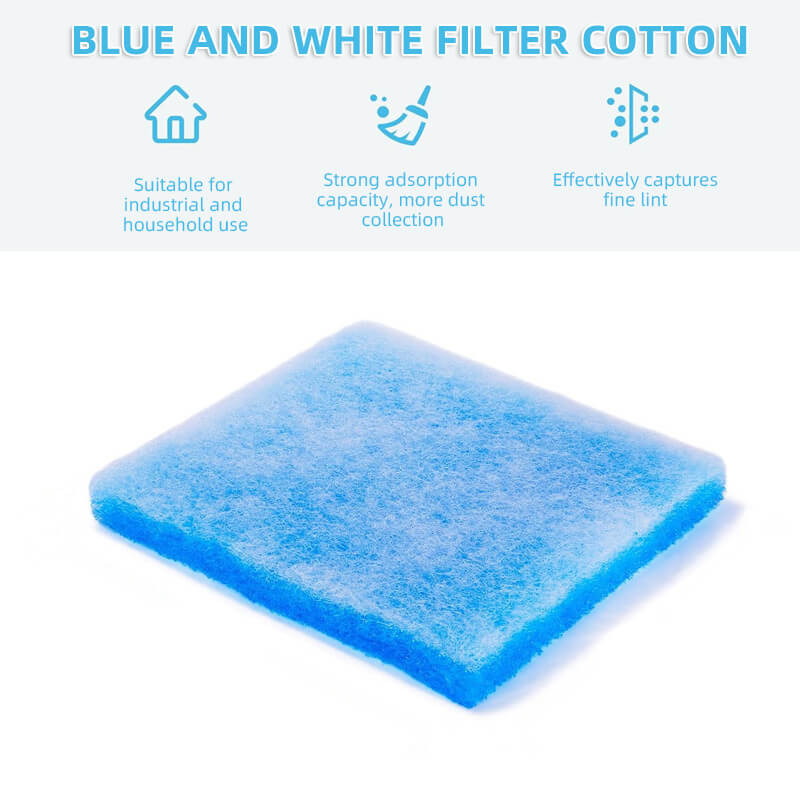

Product Features:

Blue and white cotton filter media.jpg

White and Blue Filter Cotton.jpg



SPECIFICATIONS:

Model NO.Thickness(mm)Test Air Velocity(m/s)Average Arrestance (EN779)Initial Resistance(Pa)Final Resistance(Pa)Dust Holding Capacity(g/m2)Filtration Class
HBJ-1051.565%15250400G2
HBJ-20101.570%18250420G2
HBJ-30151.580%20250520G3
HBJ-40201.580%25250630G4

*The above data are from the factory laboratory and are for reference only. The actual product shall prevail.


Application:

Used for coarse filtration in the inlet of general ventilation, air conditioning equipment and industrial purposes such as pollution prevention, public construction, air-conditioning industry, electronics industry, pharmaceutical factory, food industry, etc.


Blue-white primary filter cotton.jpg


Filter Customization:

Explore our full range of air filters and find the perfect solution for your needs. Please send us your requirements to get custom sizes and thicknesses.
